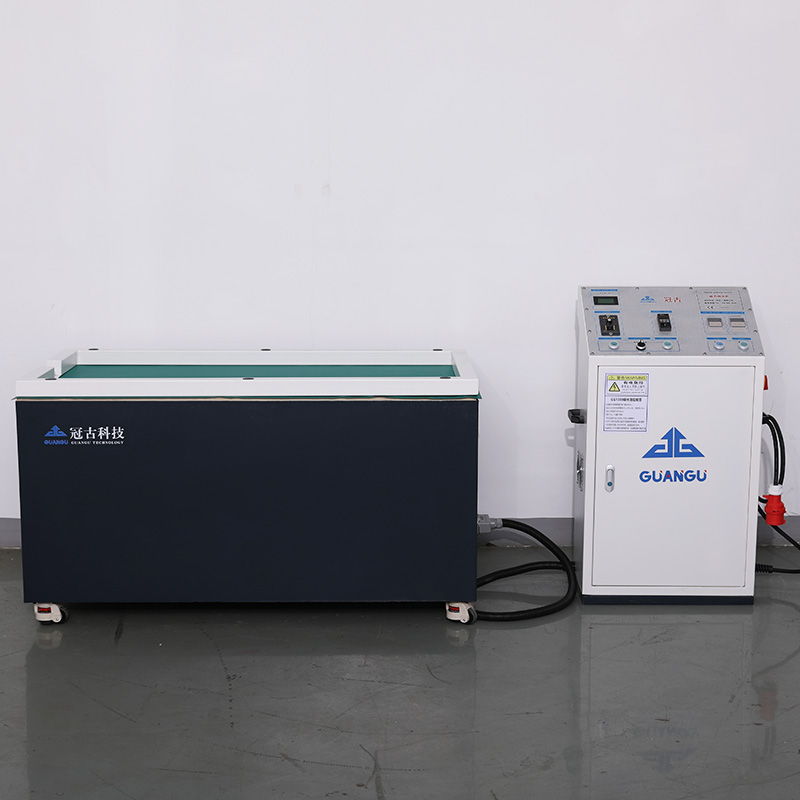

GG1980 Metal surface cleaning machine

Double position magnetic cleaning machine, 2 frequency converter control panel

Tiktok Online National Hotline
400-800-3945

Product introduction PRODUCT INTRODUCTION

Product Model	GG1980
Dimensions	19807201088
Grinding groove size	1800*520(drum)
Power supply	AC380v(50Hz)16A
Motor power	4KW*2
Equipment weight	580KG
Grinding capacity	40-60Kg
Operation mode	Positive and negative rotation
Steel needle	12KG
Lapping liquid	100L
Motor speed	1400 RPM
Diameter	0.2-2.00mm

* Magnetic polishing cleaning speed is fast, the average grinding time is about 3-15 minutes, replace the workpiece quickly, can replace the grinding parts in the operation of the magnetic polishing cleaning machine

* Simple operation, safe, completely technology-free, one person can operate several magnetic polishing cleaning machines

* Low cost, stainless steel needle is very low consumption, the main consumables for the grinding fluid

* No pollution, the grinding fluid is 90% moisture, no toxicity and the risk of fire, fully in line with environmental emission standards

* After grinding, the workpiece is easy to handle. The workpiece and stainless steel needle can be easily separated by screen, screen cylinder or separator

Guangu Strong Magnetic Polishing Machine

Consumables: 304 stainless steel magnetic needle, lapping fluid, brightener
Equipment accessory: siemens motor, siemens inverter, N50H High temperature resistant rubidium iron boron strong magnetic
Off-the-shelf finished goods, Can be customized according to customer requirements

Manufacturer direct supply
Quality of craftsmanship
Easy installation Easy to use
Strong magnetic lifetime warranty

Product feature PRODUCT CHARACTERISTICS

01: Fast speed, with an average polishing and grinding time of 5-15 minutes;

02: Easy to operate, one person can operate multiple magnetic needle polishing machines;

03: Workpiece separation can be easily achieved by using a sieve, steel needle separator, or vibrating screen to separate the workpiece from the stainless steel needle;

04: The metal workpiece does not deform after polishing, grinding, and cleaning, and does not affect accuracy;

05

Can remove welding spots, oxide skin, burrs, chamfers, etc. on the surface of the workpiece in one go, saving time and effort;

Flat polishing machine PRODUCT DISPLAY

Range of application SCOPE OF USE

1. Precision metal stamping parts 2. Stainless steel parts, 304 stainless steel screws and nuts 3. Magnesium aluminum die casting 4. Zinc aluminum die casting 5. Precision spring, shrapnel parts 6. Electronic, computer and communication parts 7. Walking heart, walking knife, CNC automatic lathe parts 8. Aerospace parts, medical equipment parts

冠古强磁抛光机优势 PRODUCT ADVANTAGE
